WPC Wall Panel
Solid core board is an environmentally friendly decorative board made of two main raw materials: natural bamboo and wood. It is fused with a nano-polymer film and then produced through extrusion, molding, injection molding and other processing techniques.

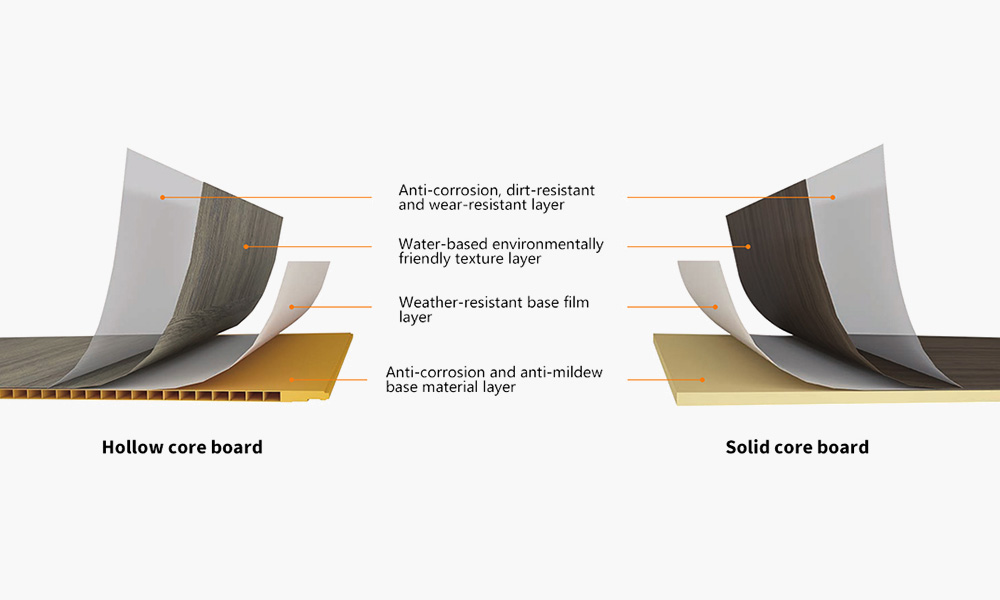

The hollow core board has a thickness of 8MM and has 4 layers of different materials, including an anti-corrosion and mildew-proof base material layer; a base film layer with superior weather resistance; a water-based environmentally friendly texture layer with realistic patterns and non-fading: anti-corrosion, antibacterial and dirt-resistant Grinding layer. Its porous hollow structure enhances the toughness and pressure resistance of the wall. The porous structure makes the wall's heat transfer and sound transmission effects lower, and has good sound insulation, heat preservation and moisture-proof effects.
Inorganic Core Material Is Green And Environmentally Friendly
Good Fire Prevention And Fire Safety Performance
Installation Is Fast And Very Smooth And Clean
Lightweight Sound Insulation And Heat Insulation
|
Items |
Performance requirement |
||
|
Solid panel |
Hollow panel |
||
|
Density/（g/cm³） |
0.8~1.1 |
||
|
Moisture content/% |
≤2 |
≤1.2 |
|
|
Bending strength/MPa |
Average value≥20 |
Average value≥18 |
|
|
Minimum value≥15 |
Minimum value≥14 |
||
|
Dimensional stability/% |
≤0.75 |
||
|
Shore hardness（HD） |
≥55 |
||
|
Thickness expansion rate of water absorbing/% |
≤0.4 |
≤0.5 |
|
|
Room temperature impact toughness/（kJ/㎡） |
≥0.05 |
||
|
Impact strength/mm |
≤0.5 |
||
|
Surface scratch resistance performance |
There are no more than 90% continuous scratches on the surface, and the patterns are not damaged |
||
|
Peel strength a/N |
≥40 |
||
|
Vicat softening temperature/℃ |
≥78 |
||
|
Adhesion of paint film |
≤2 |
||
|
Surface resistance to pollution and corrosion |
No pollution or corrosion |
||
|
Anti artificial climate aging |
Color fastness to light (grey sample card)/level |
≥3 |
|
|
Total volatile organic compound（TVOC）（72h） |
0.01mg/㎡·h |
||
|
Heavy metal content |
Soluble Lead |
Not detected |
|
|
Soluble cadmium |
not detected |
||
|
Soluble chromium |
not detected |
||
|
Soluble mercury |
not detected |
||
|
Formaldehyde emission (climate chamber method) |
0.05mg/m³ |
||
|
a Suitable for film (PVC, PET, PU, veneer, etc.) finishes |
|||
|
|
|||

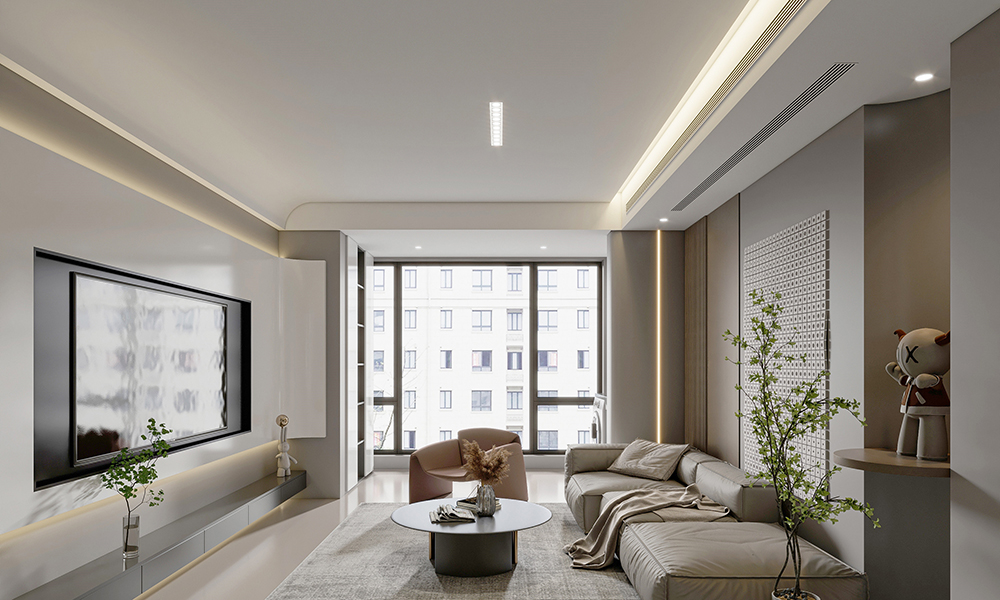

Interior rendering

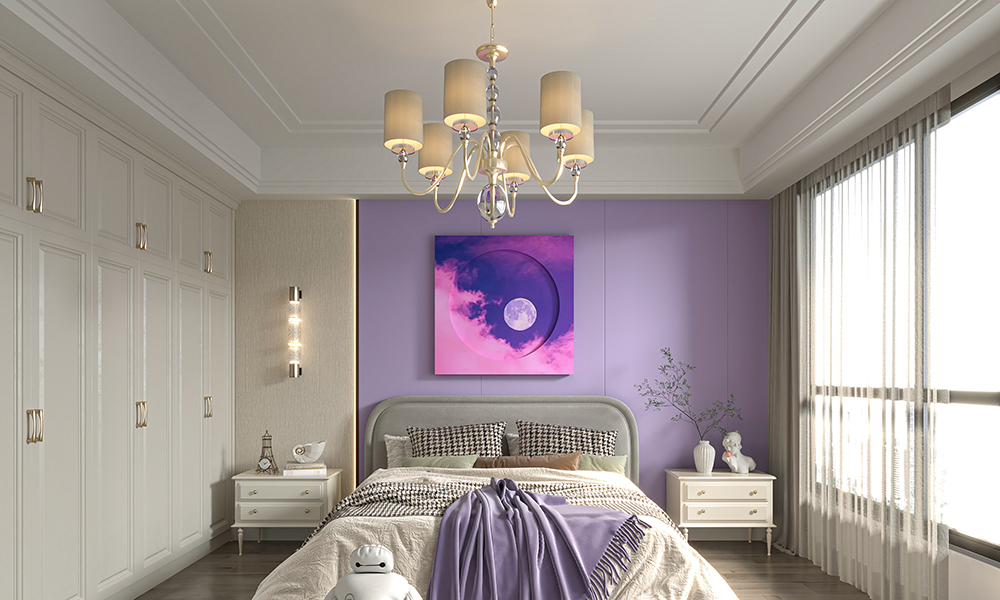

Interior rendering

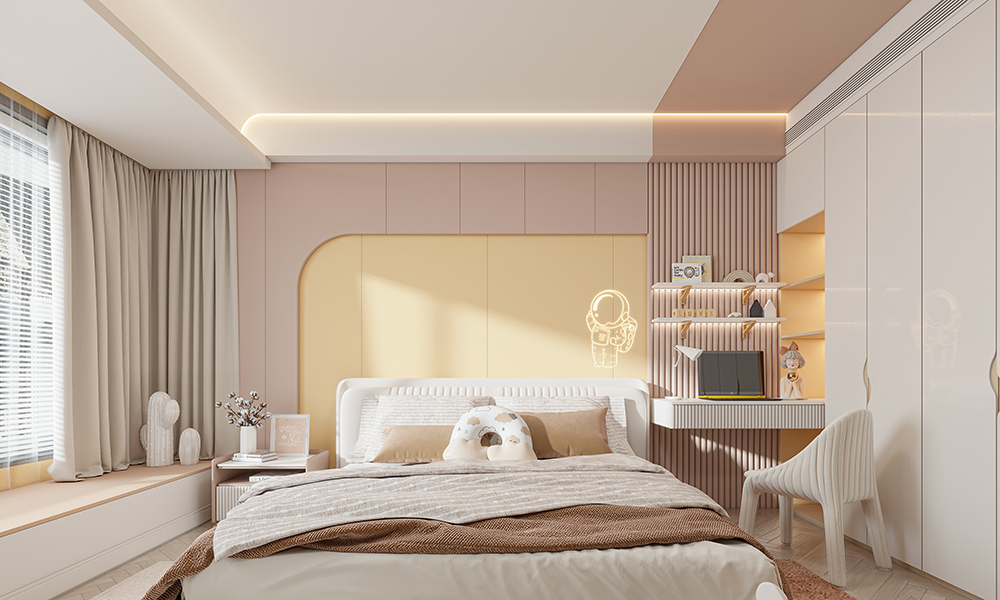

Interior rendering

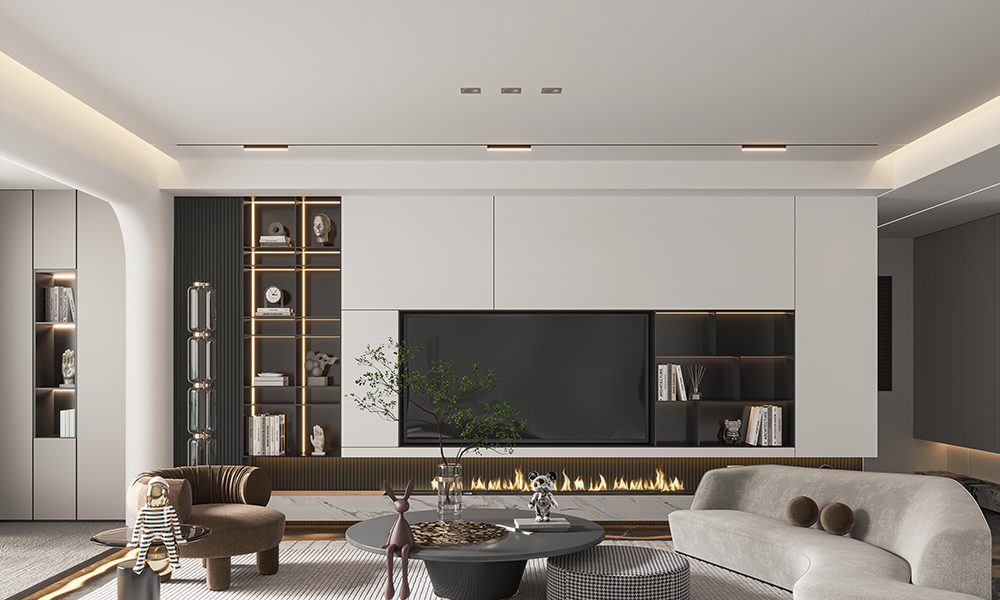

Interior rendering

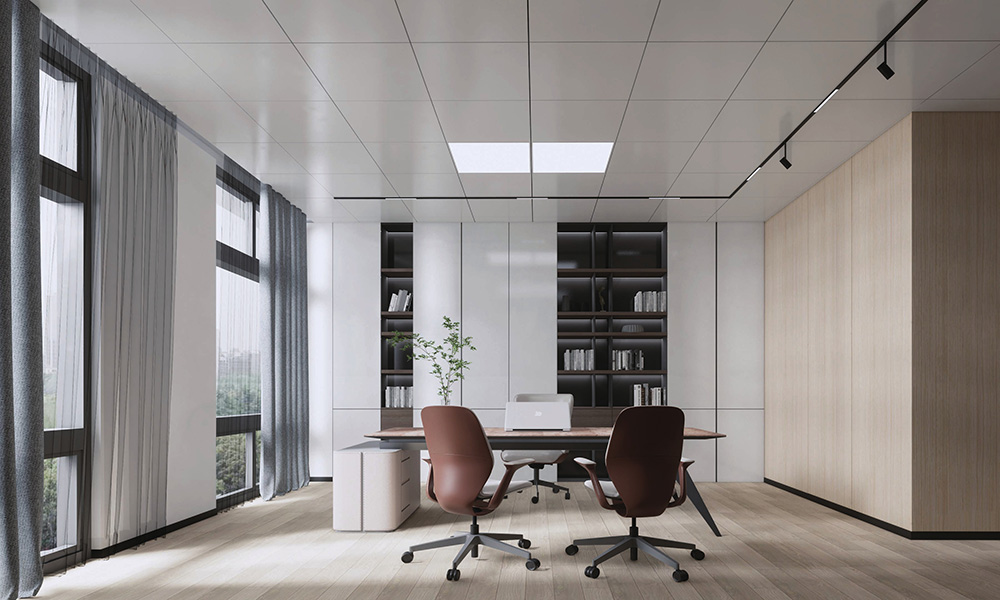

Interior rendering

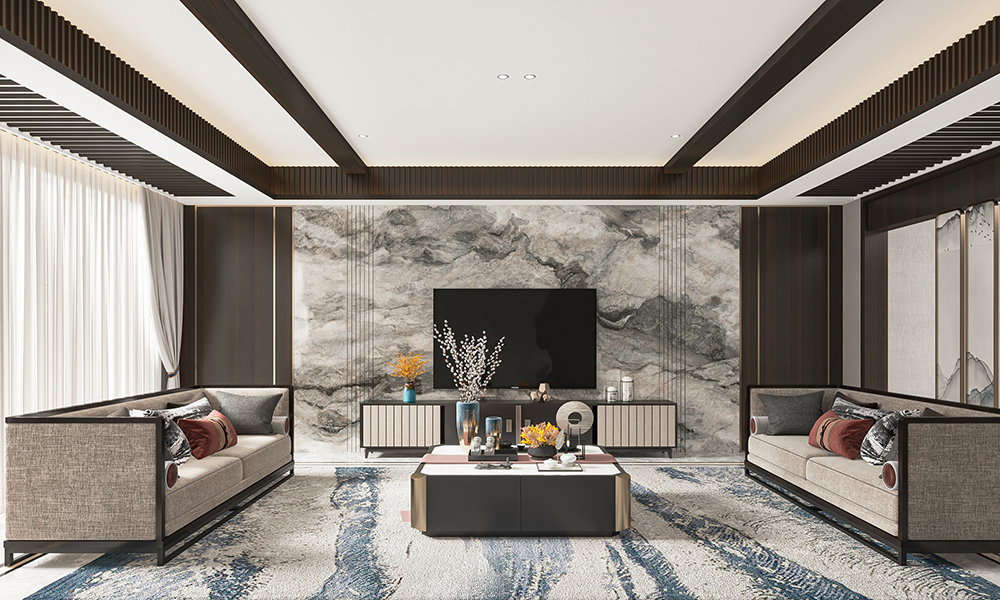

Interior rendering
Interior rendering
Interior rendering
Ten year ultra long waterproof lifespan and 97% recycling rate
Reduce carbon emissions by over 40% compared to traditional buildings
External noise level of 90 decibels can be reduced to below 40 decibels inside the cabin
Night sleep quality satisfaction increased by 52%, repurchase rate increased by 35%
Design
Further design of overseas project drawings
Customization
Product supply and customization
Logistic
Logistics and overseas customs clearance
Cultivate
Product training
Construction
Local construction delivery installation training
After-Sales
After-sales service guarantee
