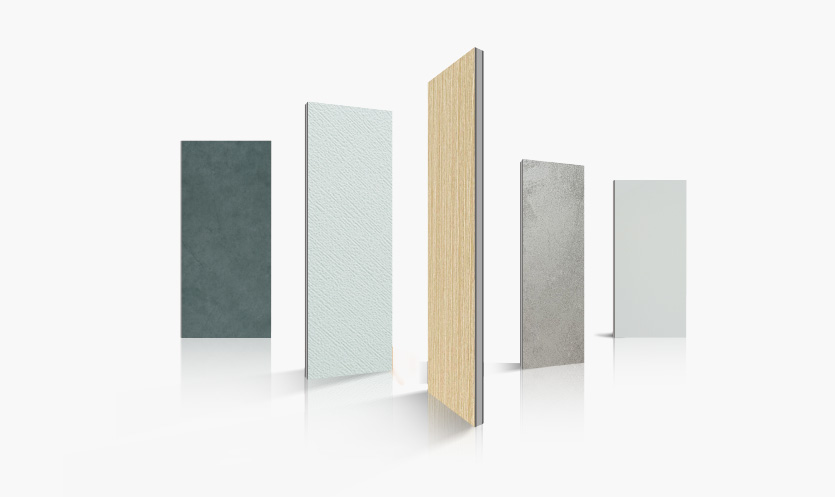

Metal composite panels are decorative materials that are formed and compounded using special processes with double-sided metal skins as decorative surfaces
Metal composite panels have good safety performance and can achieve B1 and A2 fire ratings according to actual needs. They are also easy to install and have dust-free and noise free construction
Inorganic Core Material Is Green And Environmentally Friendly
Good Fire Prevention And Fire Safety Performance
Installation Is Fast And Very Smooth And Clean
Lightweight Sound Insulation And Heat Insulation
| Inspection Items | Standard Requirements | Inspection Results | Single Conclusion | According To The Standard |
| Main Component Calorific Value (Aluminum Plate) | <3.0MJ/kg | 0MJ/kg | Conform To | GB/T 14402-2007 |
| Main Component Calorific Value (Core Material) | <3.0MJ/kg | 2.1MJ/kg | Conform To | GB/T 14402-2007 |
| Internal Secondary Component Calorific Value (Polymer Film) | ≤4.0MJ/m² | 3.3MJ/m² | Conform To | GB/T 14402-2007 |
| External Secondary Component Calorific Value (Coating) | ≤4.0MJ/m² | 1.6MJ/m² | Conform To | GB/T 14402-2007 |
| Total Calorific Value Of Combustion | <3.0MJ/kg | 2.6MJ/kg | Conform To | GB/T 14402-2007 |
| Burning Rate Growth Index | <120W/s² | 12W/s | Conform To | GB/T 20284-2006 |
| Total Heat Release In 600s | ≤7.5MJ | 1.2MJ | Conform To | GB/T 20284-2006 |
| Lateral Spread Of Flames | Not reached | Not reached | Conform To | GB/T 20284-2006 |
| Total Smoke Production Within 600 Seconds | <50m² | 36m² | Conform To | GB/T 20284-2006 |
| Smogra | <30mi/s² | 1mi/s² | Conform To | GB/T 20284-2006 |
| Burning Droplets/Particles | No dripping within 600s | No dripping within 600s | Conform To | GB/T 20284-2006 |
| Toxicity Of Smoke Production | Level 1 ZA1 | Level 1 ZA1 | Conform To | GB/T 20285-2006 |
| Inspection Items | Standard Requirements | Inspection Results | Single Conclusion | According To The Standard |
| Main Component Calorific Value (Aluminum Plate) | <3.0MJ/kg | 0MJ/kg | Conform To | GB/T 14402-2007 |
| Main Component Calorific Value (Core Material) | <3.0MJ/kg | 2.1MJ/kg | Conform To | GB/T 14402-2007 |
| Internal Secondary Component Calorific Value (Polymer Film) | ≤4.0MJ/m² | 3.3MJ/m² | Conform To | GB/T 14402-2007 |
| External Secondary Component Calorific Value (Coating) | ≤4.0MJ/m² | 1.6MJ/m² | Conform To | GB/T 14402-2007 |
| Total Calorific Value Of Combustion | <3.0MJ/kg | 2.6MJ/kg | Conform To | GB/T 14402-2007 |
| Burning Rate Growth Index | <120W/s² | 12W/s | Conform To | GB/T 20284-2006 |
| Total Heat Release In 600s | ≤7.5MJ | 1.2MJ | Conform To | GB/T 20284-2006 |
| Lateral Spread Of Flames | Not reached | Not reached | Conform To | GB/T 20284-2006 |
| Total Smoke Production Within 600 Seconds | <50m² | 36m² | Conform To | GB/T 20284-2006 |
| Smogra | <30mi/s² | 1mi/s² | Conform To | GB/T 20284-2006 |
| Burning Droplets/Particles | No dripping within 600s | No dripping within 600s | Conform To | GB/T 20284-2006 |
| Toxicity Of Smoke Production | Level 1 ZA1 | Level 1 ZA1 | Conform To | GB/T 20285-2006 |

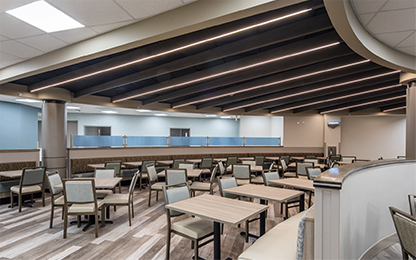

Indoor Boutique Decoration
Indoor Boutique Decoration
Indoor Boutique Decoration
Indoor Boutique Decoration
Indoor Boutique Decoration
Ten year ultra long waterproof lifespan and 97% recycling rate
Reduce carbon emissions by over 40% compared to traditional buildings
External noise level of 90 decibels can be reduced to below 40 decibels inside the cabin
Night sleep quality satisfaction increased by 52%, repurchase rate increased by 35%
Design
Further design of overseas project drawings
Customization
Product supply and customization
Logistic
Logistics and overseas customs clearance
Cultivate
Product training
Construction
Local construction delivery installation training
After-Sales
After-sales service guarantee
