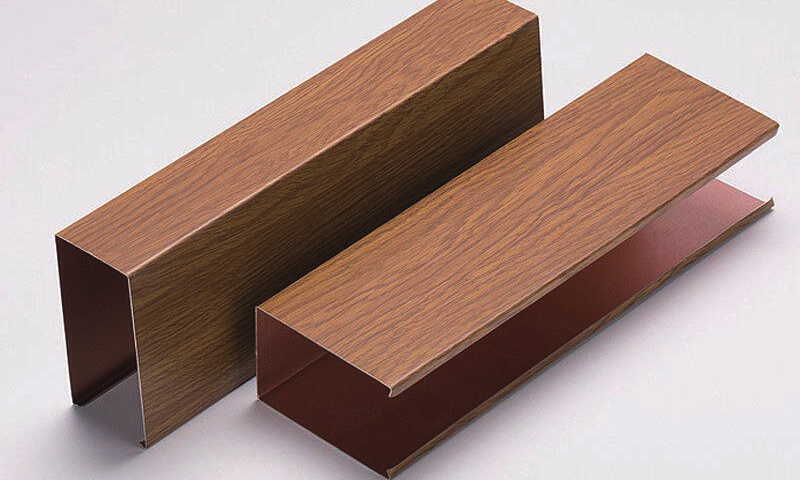

U-Square Tube
It is made of high-quality aluminum plate, with a nano-coating on the surface, which is waterproof, anti-fouling, fire-proof, moisture-proof, oxygen-resistant and corrosion-resistant.
The color is bright, the appearance is beautiful, the combination is flexible, and it can keep it from fading for a long time.
Inorganic Core Material Is Green And Environmentally Friendly
Good Fire Prevention And Fire Safety Performance
Installation Is Fast And Very Smooth And Clean
Lightweight Sound Insulation And Heat Insulation
| Test items | Standard requirement | Test result | Single conclusion | According to the standard | ||
| Size deviation | Deflection | Location A | -1.0mm~+1.5mm | +0.26mm | Conform to | GB/T 23444-2009 |
| Location B | -1.0mm~+1.5mm | +0.26mm | Conform to | 7.4 | ||
| Maximum edge curvature | ≤2% | 0.26% | Conform to | |||
| Adhesion | Level 0 | Level 0 | Conform to | GB/T 23444-2009 7.7 GB/T 9286-2021 |
||
| Impact resistance | ≥4N·m | 4N·m | Conform to | GB/T 23444-2009 7.9 GB/T 1732-2020 |
||
| Resistant to hydrochloric acid (5%HCI(V/V), 24h) | No change | No change | Conform to | GB/T 23444-2009 7.10.1 |
||
| Alkali resistance (saturated Ca(OH)z, 24h) | No change | No change | Conform to | GB/T 23444-2009 7.10.2 |
||
| Oil resistance (25# engine oil, 24h) | No change | No change | Conform to | GB/T 23444-2009 7.10.3 |
||

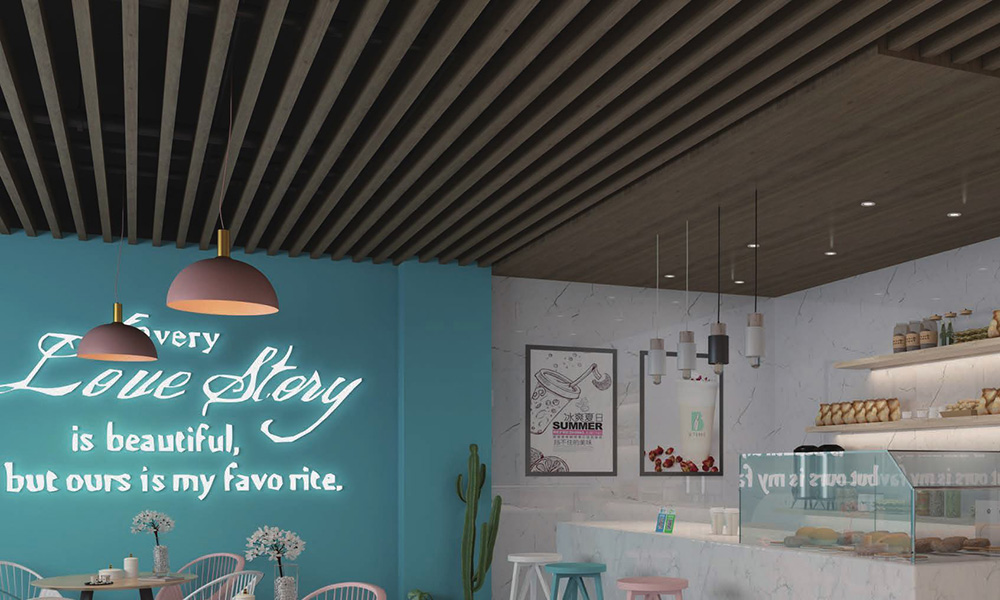

U-Square Tube Rendering
Ten year ultra long waterproof lifespan and 97% recycling rate
Reduce carbon emissions by over 40% compared to traditional buildings
External noise level of 90 decibels can be reduced to below 40 decibels inside the cabin
Night sleep quality satisfaction increased by 52%, repurchase rate increased by 35%
Design
Further design of overseas project drawings
Customization
Product supply and customization
Logistic
Logistics and overseas customs clearance
Cultivate
Product training
Construction
Local construction delivery installation training
After-Sales
After-sales service guarantee
