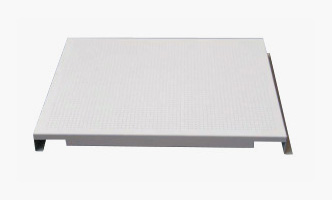

Hook-up Aluminum Veneer
FSILON aluminum veneer is extremely cost-effective. Compared with traditional ordinary wood panel ceilings, it has more diverse forms and more novel colors.
It can be matched with different rooms to create different decorative effects. At the same time, it is fire-resistant and high-temperature resistant, and has excellent fire-proof performance.
It is green and environmentally friendly and can effectively withstand high temperatures and is not easy to change after long-term use.
Inorganic Core Material Is Green And Environmentally Friendly
Good Fire Prevention And Fire Safety Performance

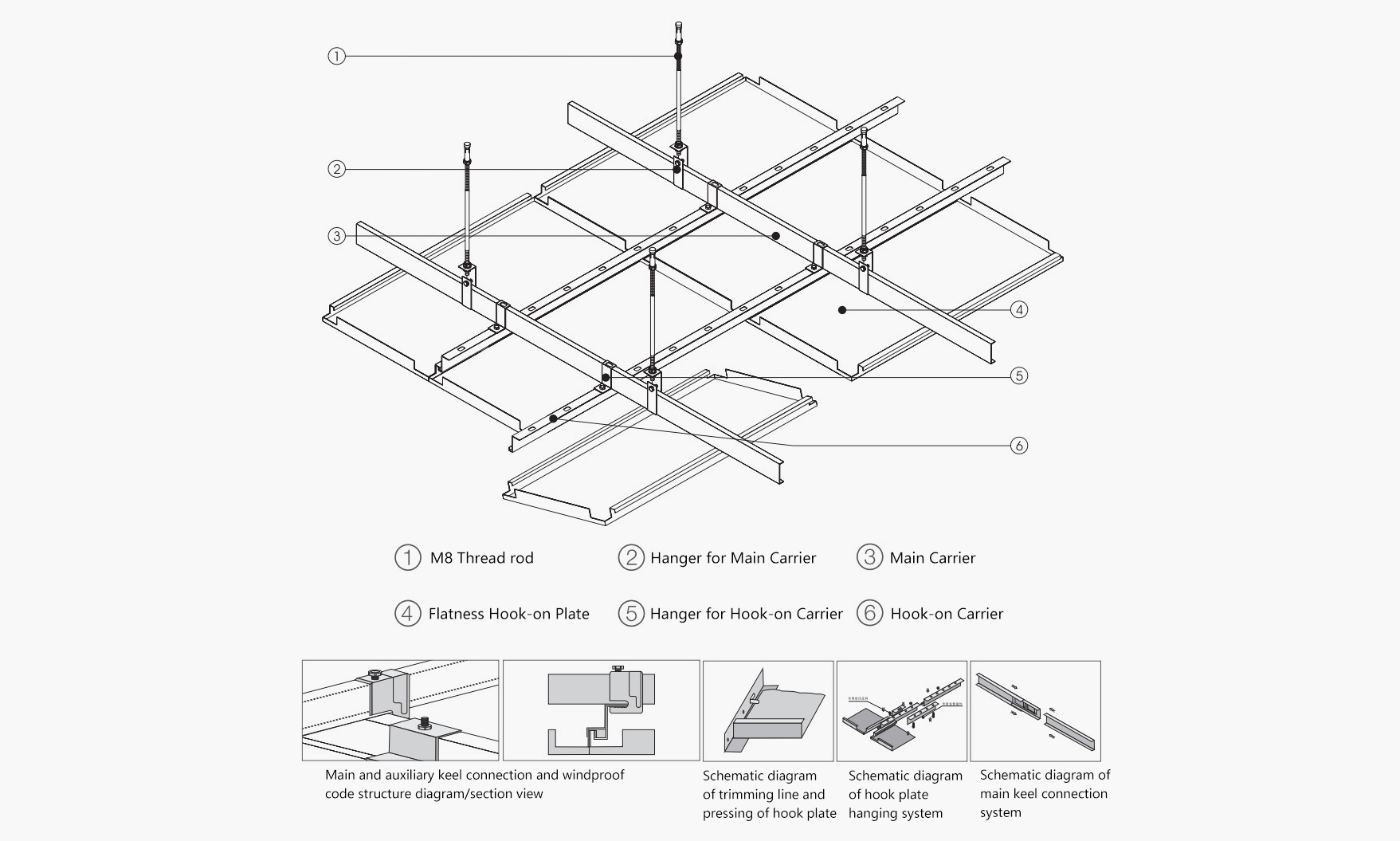

Installation Is Fast And Very Smooth And Clean
Lightweight Sound Insulation And Heat Insulation
| Test items | Standard requirement | Test result | Single conclusion | According to the standard | |
| Adhesion | Dry | Cross-hatch method level 0 | Cross-hatch method level 0 | Conform to | GB/T 23443-2009 7.6.1 |
| GB/T 9286-1998 (2004) | |||||
| Wet type | Cross-hatch method level 0 | Cross-hatch method level 0 | Conform to | GB/T 23443-2009 7.6.2 | |
| GB/T 9286-1998 (2004) | |||||
| Boiling water | Cross-hatch method level 0 | Cross-hatch method level 0 | Conform to | GB/T 23443-2009 7.6.3 | |
| GB/T 9286-1998 (2004) | |||||
| Pencil hardness | ≥1H | 2H | Conform to | GB/T 23443-2009 7.7 | |
| (Zhonghua pencil) | GB/T 6739-2006 | ||||
| Resistant to hydrochloric acid (5%HCI(V/V), 24h) | No change | No change | Conform to | GB/T 23443-2009 7.8.1.1 | |
| Resistant to nitric acid | No bubbling or other changes, △E≤5.0 | No bubbling or other changes, △E≤0.35 | Conform to | GB/T 23443-2009 7.8.1.2 | |
| Mortar resistance | No change | No change | Conform to | GB/T 23443-2009 7.8.2 | |
| Solvent resistance | No leakage bottom | No leakage bottom | Conform to | GB/T 23443-2009 7.8.3.1 | |
| Wear resistance | ≥5L/µm | 7.7L/µm | Conform to | GB/T 23443-2009 | |
| 7.10 Appendix B | |||||
| Impact resistance | The aluminum materials on the front and back should have no cracks | No cracks in the front and back aluminum materials | Conform to | GB/T 23443-2009 7.11 | |
| The coating should be free from peeling and cracking | No peeling or cracking of coating | GB/T 1732-1993 (2004) | |||
Subway Stations

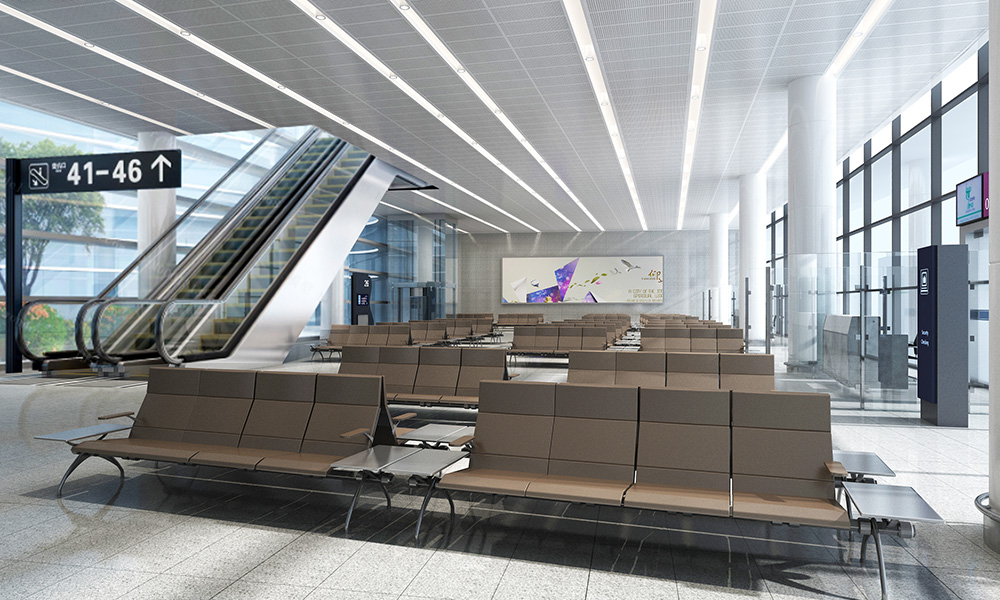

Airports
Hospitals
Ten year ultra long waterproof lifespan and 97% recycling rate
Reduce carbon emissions by over 40% compared to traditional buildings
External noise level of 90 decibels can be reduced to below 40 decibels inside the cabin
Night sleep quality satisfaction increased by 52%, repurchase rate increased by 35%
Design
Further design of overseas project drawings
Customization
Product supply and customization
Logistic
Logistics and overseas customs clearance
Cultivate
Product training
Construction
Local construction delivery installation training
After-Sales
After-sales service guarantee
